TRAVEL-TRAILER RECORD · 2027

Rockwood Mini Lite 2524FBT

Of the nine Mini Lites at 25 ft 9 in or 25 ft 10 in, the 2524FBT is the lightest: 5,148 lb dry with a 565 lb hitch weight, the smallest share of dry weight on the hitch in the whole line at 11%.

Source checked
Rockwood Mini Lite 2524FBT scale drawing: 25 ft 9 in long, 10 ft 11 in tall Side elevation drawn to scale from the published exterior length of 25 ft 9 in and exterior height of 10 ft 11 in, on a generic travel-trailer outline. Roof sits 2 ft 7 in under a 13 ft 6 in limit. 13 FT 6 IN CLEARANCE 10 ft 11 in 25 ft 9 in overall Roof: 2 ft 7 in under a 13 ft 6 in limit SCALE DRAWING FROM PUBLISHED DIMENSIONS

Drawn to scale from the published 25 ft 9 in length and 10 ft 11 in height, on a generic outline: 2 ft 7 in under a 13 ft 6 in roof limit.

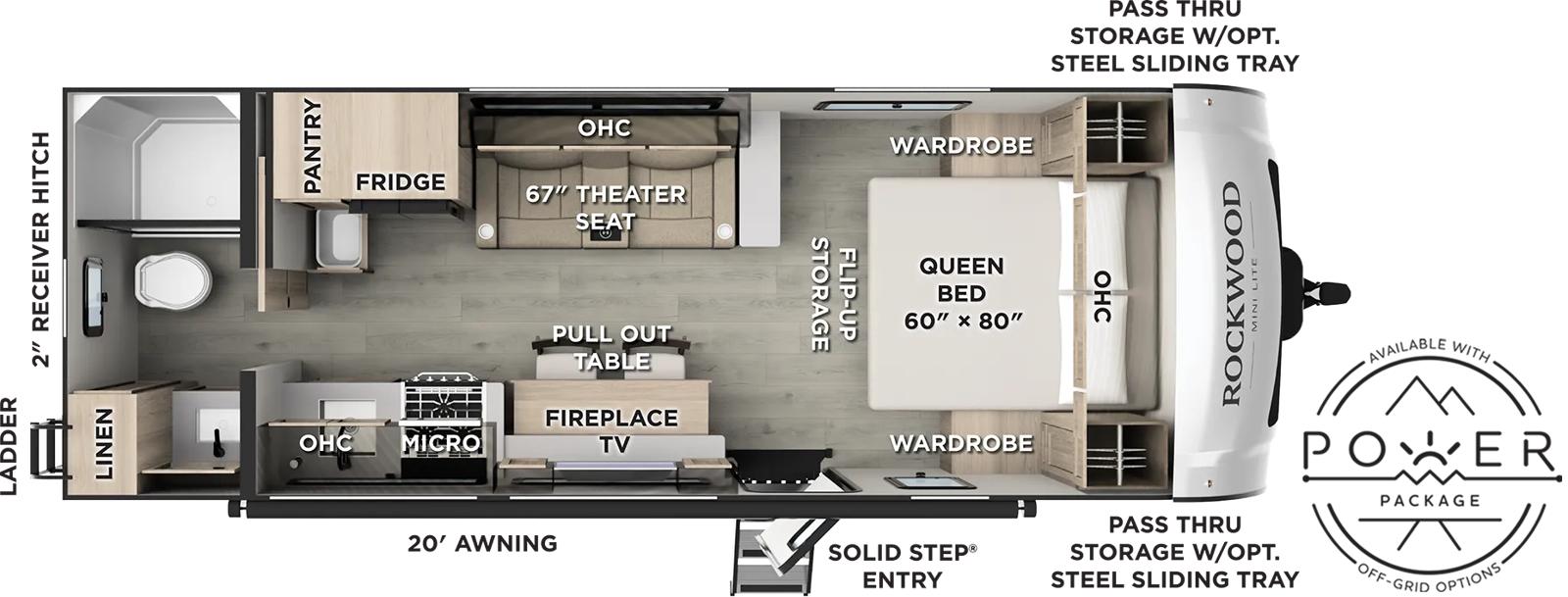

Manufacturer floor plan

Forest River Rockwood Mini Lite 2524FBT floor plan layout published by Forest River
Forest River's published floor plan for the 2524FBT.

Forest River's 2524FBT specifications

Length25 ft 9 in
Exterior height10 ft 11 in
Exterior width8 ft
Dry weight5,148 lb
Hitch weight565 lb
Cargo carrying capacity1,807 lb
Sleeping capacityUp to 3
Fresh water53 gal
Gray water29 gal
Black water29 gal
Awning length20 ft

How the 2524FBT undercuts the shorter 2205S on weight

The 2524FBT is 3 of 13 by dry weight, and the two lighter plans, the 2109S and 2108RB, are 3 ft 5 in and 3 ft 7 in shorter. The 2205S is 2 ft shorter and still 55 lb heavier. Its 565 lb hitch weight is 2 of 13, behind only the 2109S's 557 lb. For a buyer who wants the full 25 ft 9 in of floor at the lowest weight the line offers, this is the plan.

Forest River's drawing shows both side walls straight, with no box projecting from either side. Inside that shell, the 60 by 80 inch queen sits at the front with flip-up storage and a wardrobe on each side. The middle is a living area: a 67-inch theater seat with overhead cabinets on the wall opposite the door, and on the door side a fireplace and TV cabinet with a pull-out table. The kitchen is at the rear on the door side, with sink, range, microwave, and overhead cabinets, and the refrigerator and pantry face it from the far wall. The bathroom spans the rear: shower, toilet, lavatory, and a linen cabinet. The front pass-through storage is labelled for an optional steel sliding tray, the awning is 20 ft, and the drawing carries the Power Package off-grid badge.

The tradeoff follows from the straight walls. The aisle between the theater seat and the fireplace cabinet is the whole living room, and the pull-out table is the only table drawn. RVUSA rates the plan for up to 3, 6 of 13 in the line, and cargo capacity is 1,807 lb, 7 of 13.

Forest River's 2027 2524FBT drawing and figures →

2524FBT: 11% of dry weight on the hitch

Hitch share of dry weight1 of 13 lowest565 lb on 5,148 lb
Dry weight3 of 13 lightestLightest of the nine plans at 25 ft 9 in or 25 ft 10 in
Hitch weight2 of 13 lightest8 lb above the 2109S
Tanks111 gal total53 fresh, 29 gray, 29 black

Pull-out table to rear bath: a 2524FBT walkthrough

  1. Pull the table out from the fireplace cabinet and sit on the 67-inch theater seat. Count how many people can eat at it, because it is the only table in the drawing.
  2. Stand in the aisle between the theater seat and the cabinet and check the width against how many people will be inside on a rainy day.
  3. Open the front pass-through storage on both sides and ask whether the optional steel sliding tray is fitted.
  4. Go to the rear, where the kitchen, refrigerator, and full-width bathroom all meet, and check that the bathroom door and the refrigerator door can open at the same time.

What the 2524FBT's weight saving costs against these three

Same queen, a slide and a bigger gray tankRockwood Mini Lite 2525RB

Same length and the same 60 by 80 inch queen. It is 675 lb heavier with a hitch weight 120 lb higher and 55 lb more cargo capacity, sleeps one fewer, and has a peninsula kitchen, a theater seat in a box off the far wall, and 58 gallons of gray against 29.

Open record →One more sleeper and a dinetteRockwood Mini Lite 2522FB

Same length, 640 lb heavier, hitch weight 80 lb higher, cargo capacity 50 lb higher. It sleeps one more on two slides, with a 39-inch dinette opposite a 60-inch theater seat and a 60 by 74 inch queen.

Open record →Shorter is not lighter hereRockwood Mini Lite 2205S

2 ft shorter, yet 55 lb heavier with a hitch weight 35 lb higher. It sleeps one fewer and carries 216 lb less cargo capacity.

Open record →
View every Rockwood Mini Lite floor plan →
Sources and model year

Checking the 2524FBT's weights at the dealer

Length, weights, tank sizes, and the layout are from Forest River's 2027 Rockwood Mini Lite 2524FBT figures and drawing, read on 2026-09-26. Forest River labels the dry weight (UVW) and cargo carrying capacity (CCC) as estimated averages based on standard build optional equipment. Sleeping capacity comes from RVUSA's 2027 spec guide.

RVUSA's guide gives a dry weight a little below Forest River's UVW, and a GVWR that falls short of UVW plus CCC, which is 6,955 lb when the two are added. This page uses Forest River's numbers, and the weight label on the unit settles the rating.
