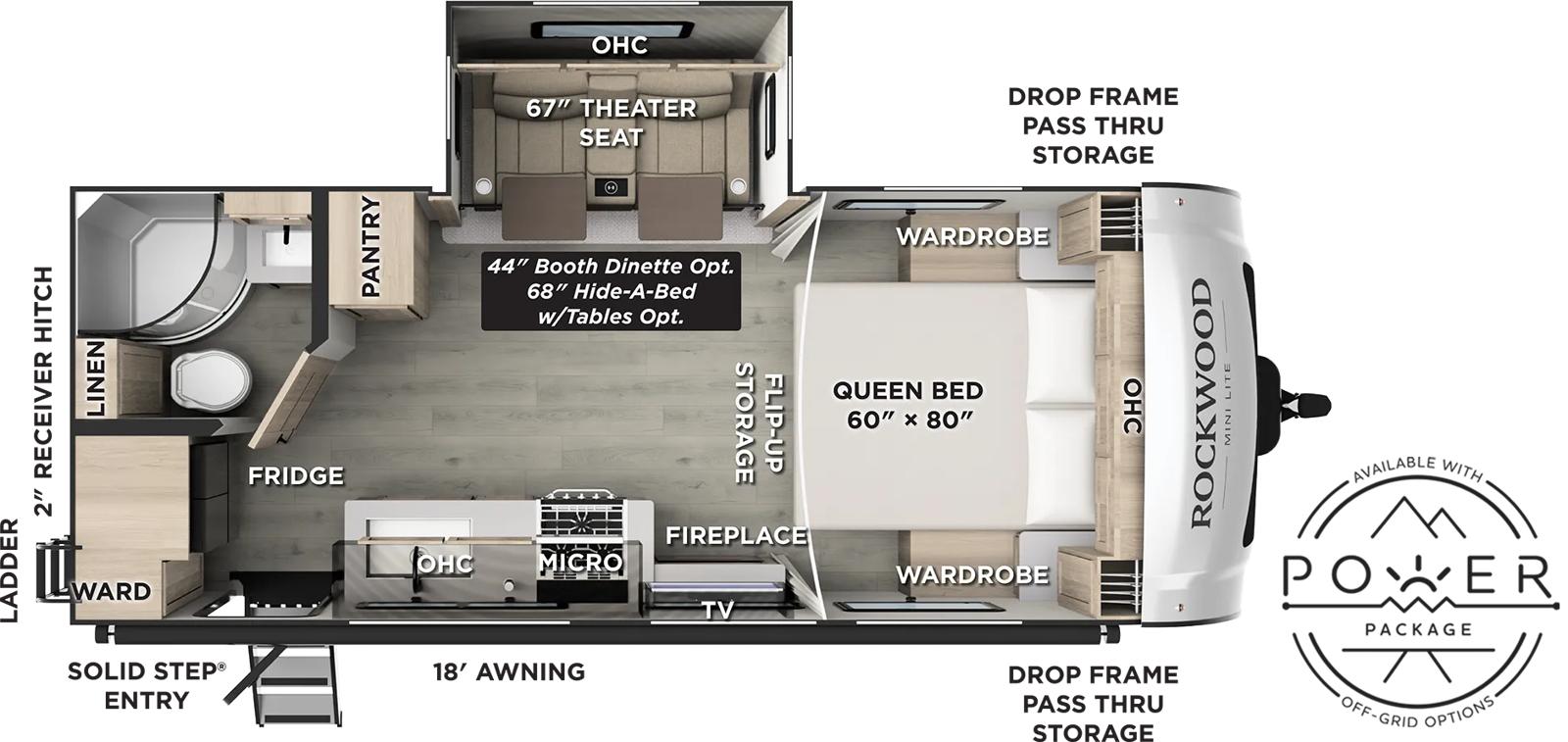

Manufacturer floor plan
Theater seat, booth dinette, or hide-a-bed in the 2205S slide
Forest River's drawing for the 2205S puts a 67-inch theater seat in the slide under overhead cabinets and prints two options beneath it: a 44-inch booth dinette, and a 68-inch hide-a-bed with tables. The standard drawing shows no other table, so the option on the unit decides where two people eat. Sleeping capacity is up to 2 on RVUSA's listing, the lowest figure in the line and one the 2205S shares with four other plans.
The rest of the plan is fixed. The queen fills the front between two wardrobes, with overhead cabinets on the front wall and flip-up storage printed at its foot. A fireplace and TV stand on the door side next to the bed, followed by the cooktop with a microwave and a sink under overhead cabinets. The fridge sits near the rear by the bath wall with a pantry across from it, the bath with its curved corner shower fills the off-door rear corner, and the only entry is at the rear of the door side, beside a wardrobe labeled Ward.
Against the 2109S, the plan it most resembles, the 2205S adds 6 inches of bed length and a fireplace for 731 lb more dry weight, while its 600 lb hitch weight is 3 of 13 lightest and only 43 lb more. Its hitch weight is 11.5% of dry weight, 4 of 13 from the lowest share.
Forest River's 2027 2205S page and drawing →Three tests at the 2205S fireplace end and rear door
- Find out which slide seating the unit on the lot has: the 67-inch theater seat as drawn, the 44-inch booth dinette, or the 68-inch hide-a-bed with tables. It changes where you eat, and the unit's label weight reflects whatever was installed.
- With the slide in, walk around the 60 by 80 inch queen. The bed runs between two wardrobes with the fireplace and TV beside it, so check that both wardrobe doors open and the flip-up storage lifts with the slide closed.
- Come in by the rear Solid Step with an armful of groceries. The fridge, pantry, Ward cabinet, and bath door all sit within a few steps of the only door, so check that two people can pass there. If off-grid use matters, ask whether the unit carries the Power Package that the drawing marks as available.
Where 5,203 lb puts the 2205S among 13 plans
Plans that share the 2205S seat, bed, or length
1 in longer, 190 lb heavier, GVWR 199 lb higher, hitch 50 lb more, cargo capacity 9 lb more. Same 60 by 80 inch queen, but a 60-inch theater seat, a pull-out table with two chairs mid-floor, a pull-out griddle outside, the bath across the rear wall, and the entry moved forward beside the bed.
Open record →Lighter, with a sofa and table as drawnRockwood Mini Lite 2109S1 ft 5 in shorter, 731 lb lighter, GVWR 957 lb lower, hitch 43 lb less. It sleeps one more but carries 226 lb less. The queen is 60 by 74 inches and the slide holds a 72-inch sofa with a 30 by 15 inch table.
Open record →Same theater seat, kitchen at the backRockwood Mini Lite 2515S2 ft longer and 585 lb heavier, with 60 lb more hitch weight. It keeps a 67-inch theater seat and a 68-inch hide-a-bed option in the slide, but moves the bath to the middle and the kitchen to the rear wall, adds a 39-inch dinette and a second slide, sleeps 2 more, and adds 281 lb of cargo capacity.
Open record →The 2205S specification table
2205S figures: Forest River first, RVUSA for three
Length, height, weights, cargo capacity, tank sizes, and the 18 ft awning are from Forest River's 2027 2205S page, read on 2026-09-26, and the room layout is read from the labels on its 2027 drawing. Forest River labels the dry weight UVW and the cargo figure CCC and calls both estimated averages based on standard build optional equipment. GVWR, sleeping capacity, and slide count are RVUSA's 2027 figures. RVUSA also lists its own dry weight for this plan, lower than Forest River's UVW; this page uses Forest River's 5,203 lb throughout, and RVUSA's GVWR equals that UVW plus the 1,591 lb CCC.
