TRAVEL-TRAILER RECORD · 2027

Rockwood Mini Lite 2523MBR

The 2523MBR is the Mini Lite that moves the bedroom to the middle: a 60 by 80 inch queen in its own box, a kitchen across the front wall, and a full-width bath at the rear. It is also the heaviest plan in the line, 6,123 lb dry.

Source checked
Rockwood Mini Lite 2523MBR scale drawing: 25 ft 9 in long, 10 ft 11 in tall Side elevation drawn to scale from the published exterior length of 25 ft 9 in and exterior height of 10 ft 11 in, on a generic travel-trailer outline. Roof sits 2 ft 7 in under a 13 ft 6 in limit. 13 FT 6 IN CLEARANCE 10 ft 11 in 25 ft 9 in overall Roof: 2 ft 7 in under a 13 ft 6 in limit SCALE DRAWING FROM PUBLISHED DIMENSIONS

Drawn to scale from the published 25 ft 9 in length and 10 ft 11 in height, on a generic outline: 2 ft 7 in under a 13 ft 6 in roof limit.

Manufacturer floor plan

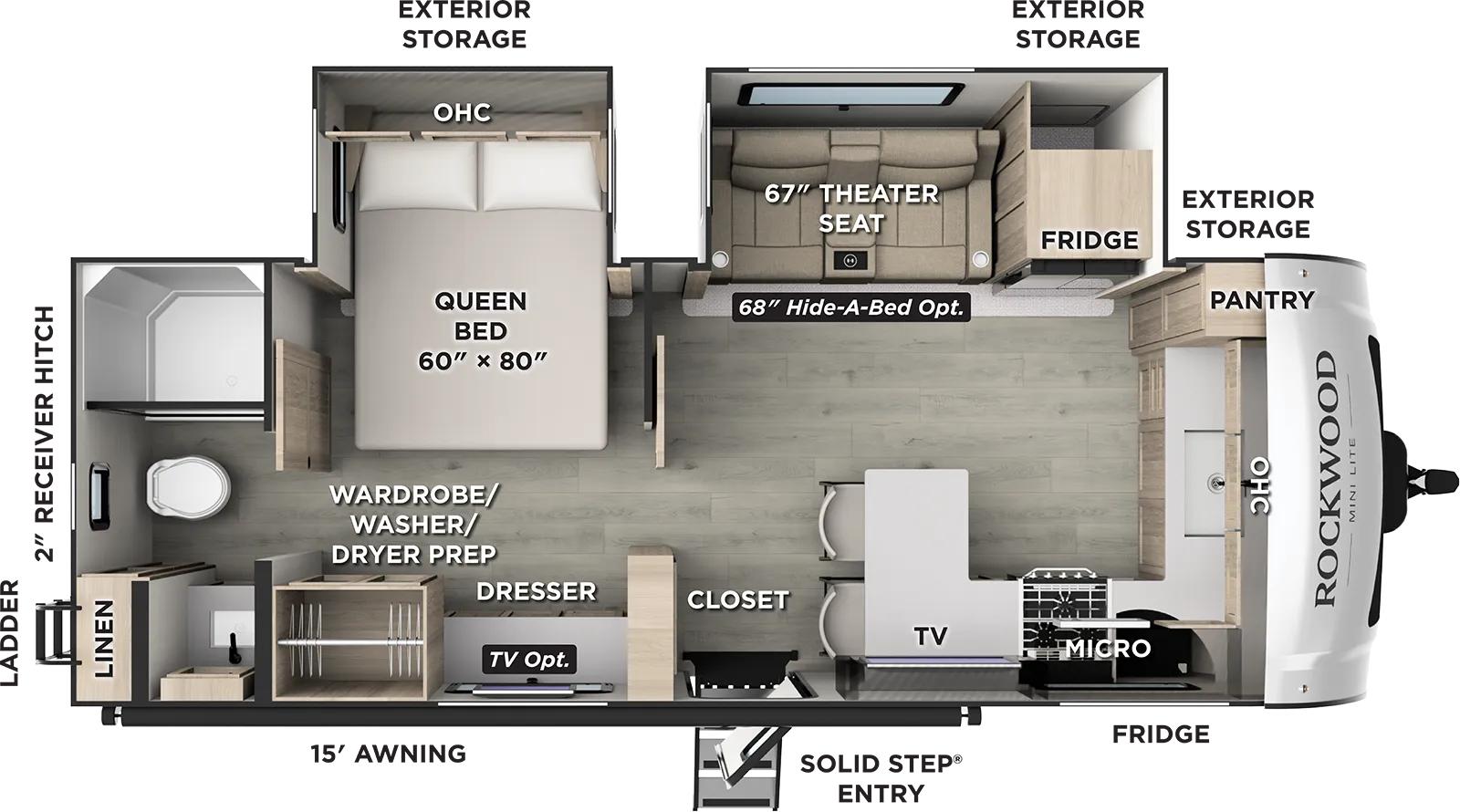

Forest River Rockwood Mini Lite 2523MBR floor plan layout published by Forest River
Forest River's published floor plan for the 2523MBR.

Front kitchen and mid queen in the 2523MBR

Forest River's drawing starts at the hitch end with the kitchen. The sink sits on the front wall under overhead cabinets, a pantry fills the corner opposite the door, and the range and microwave run along the door side. An island with a TV and two stools stands in front of them. Beside the kitchen, a box off the far wall holds a 67-inch theater seat, offered as a 68-inch hide-a-bed, with the refrigerator at its front end.

Behind that, a second box on the same wall carries the 60 by 80 inch queen with overhead cabinets. Across from the bed are a closet beside the entry, a dresser with an optional TV, and a wardrobe drawn with washer and dryer prep. The bathroom spans the rear wall: shower, toilet, lavatory, and linen cabinet. Three exterior storage doors are labelled, and the awning is 15 ft.

Two figures set it apart in the family. Its 54-gallon fresh tank is the only one in the line above 53 gallons, and with 58 gallons of gray and 29 of black its tanks total 141 gallons, the largest in the Mini Lite family. For a couple or a small crew that stays off hookups, that is the case for this plan.

Forest River's 2027 2523MBR drawing and figures →

2523MBR: the heaviest dry weight and hitch weight in the line

The mid bedroom and front kitchen come with the most weight of any Mini Lite.

Dry weight13 of 13 lightest6,123 lb, 115 lb above the 2513S
Hitch weight13 of 13 lightest745 lb, which is 12.2% of dry weight, 9 of 13 lowest share
Cargo carrying capacity9 of 13 highest1,622 lb
Sleeping capacity8 of 13 highestUp to 3 per RVUSA, as with the 2109S and 2524FBT
Tanks141 gal total54 fresh, 58 gray, 29 black
Length25 ft 9 inShared with the 2515S, 2522FB, 2524FBT, and 2525RB

The washer and dryer prep is where this ranking can move. The drawing labels the space as prep, and any appliances added there are extra equipment, so their weight comes out of the 1,622 lb cargo capacity, which is already the ninth highest of 13.

From the 2523MBR entry to the washer and dryer prep

  1. Step in through the Solid Step entry. The closet is beside the door and the bedroom is straight across, so check how private the queen is from the doorway with the slides out.
  2. Walk forward to the kitchen and sit at the island's two stools. With the theater seat as the only other seat, count where a third person eats.
  3. Ask for both slides to be brought in. The queen and the theater seat are each drawn in a box, so see whether the bed, the bathroom, and the refrigerator are still usable at a rest stop.
  4. The drawing prints FRIDGE twice: once inside the theater-seat box and once outside the door-side wall at the front. Ask which refrigerator this unit has before counting on either.
Sources and model year

2523MBR figures and where RVUSA differs

Everything on this page except sleeping capacity and slide count is from Forest River's 2027 Rockwood Mini Lite 2523MBR figures and drawing, read on 2026-09-26; those two come from RVUSA's 2027 spec guide. Forest River describes the dry weight (UVW) and cargo carrying capacity (CCC) as estimated averages based on standard build optional equipment, so the certification label on the trailer is what counts.

RVUSA's guide shows a higher dry weight for this plan than Forest River's UVW, and a GVWR that is not the sum of Forest River's UVW and CCC (by addition, 7,745 lb). The page follows Forest River's figures.

2523MBR table: 54 gal fresh, 58 gal gray

Length25 ft 9 in
Exterior height10 ft 11 in
Exterior width8 ft
Dry weight6,123 lb
Hitch weight745 lb
Cargo carrying capacity1,622 lb
Sleeping capacityUp to 3
Slides2
Fresh water54 gal
Gray water58 gal
Black water29 gal
Awning length15 ft

Lighter plans that keep a 2523MBR buyer's priorities

Same queen and gray tank, 300 lb lessRockwood Mini Lite 2525RB

Also a 60 by 80 inch queen and a 58-gallon gray tank at the same length, but 300 lb lighter with a hitch weight 60 lb lower and 240 lb more cargo capacity. It sleeps one fewer on one fewer slide, with the queen at the front and the bath across the rear.

Open record →Same sleeping, 975 lb lighterRockwood Mini Lite 2524FBT

Same length and the same rating of 3, with a 60 by 80 inch queen at the front. It is 975 lb lighter, its hitch weight is 180 lb lower, and cargo capacity is 185 lb higher. The gray tank drops to 29 gallons.

Open record →The other heavy two-slide planRockwood Mini Lite 2513S

0 ft 1 in longer, 115 lb lighter, a hitch weight 25 lb lower, and 90 lb more cargo capacity. It sleeps one fewer and keeps two slides, but puts the queen at the front and builds the middle around an island kitchen and a 67-inch theater seat.

Open record →
View every Rockwood Mini Lite floor plan →
