TRAVEL-TRAILER RECORD · 2027

Rockwood Mini Lite 2520BH

The 2520BH is the Mini Lite bunkhouse with a bike door: two 36 by 71 inch bunks in the rear corner, a 44 by 85 inch U-dinette across from the kitchen, and a front queen. RVUSA rates it for up to 6, and only the 2509S sleeps more.

Source checked
Rockwood Mini Lite 2520BH scale drawing: 25 ft 10 in long, 10 ft 11 in tall Side elevation drawn to scale from the published exterior length of 25 ft 10 in and exterior height of 10 ft 11 in, on a generic travel-trailer outline. Roof sits 2 ft 7 in under a 13 ft 6 in limit. 13 FT 6 IN CLEARANCE 10 ft 11 in 25 ft 10 in overall Roof: 2 ft 7 in under a 13 ft 6 in limit SCALE DRAWING FROM PUBLISHED DIMENSIONS

Drawn to scale from the published 25 ft 10 in length and 10 ft 11 in height, on a generic outline: 2 ft 7 in under a 13 ft 6 in roof limit.

Manufacturer floor plan

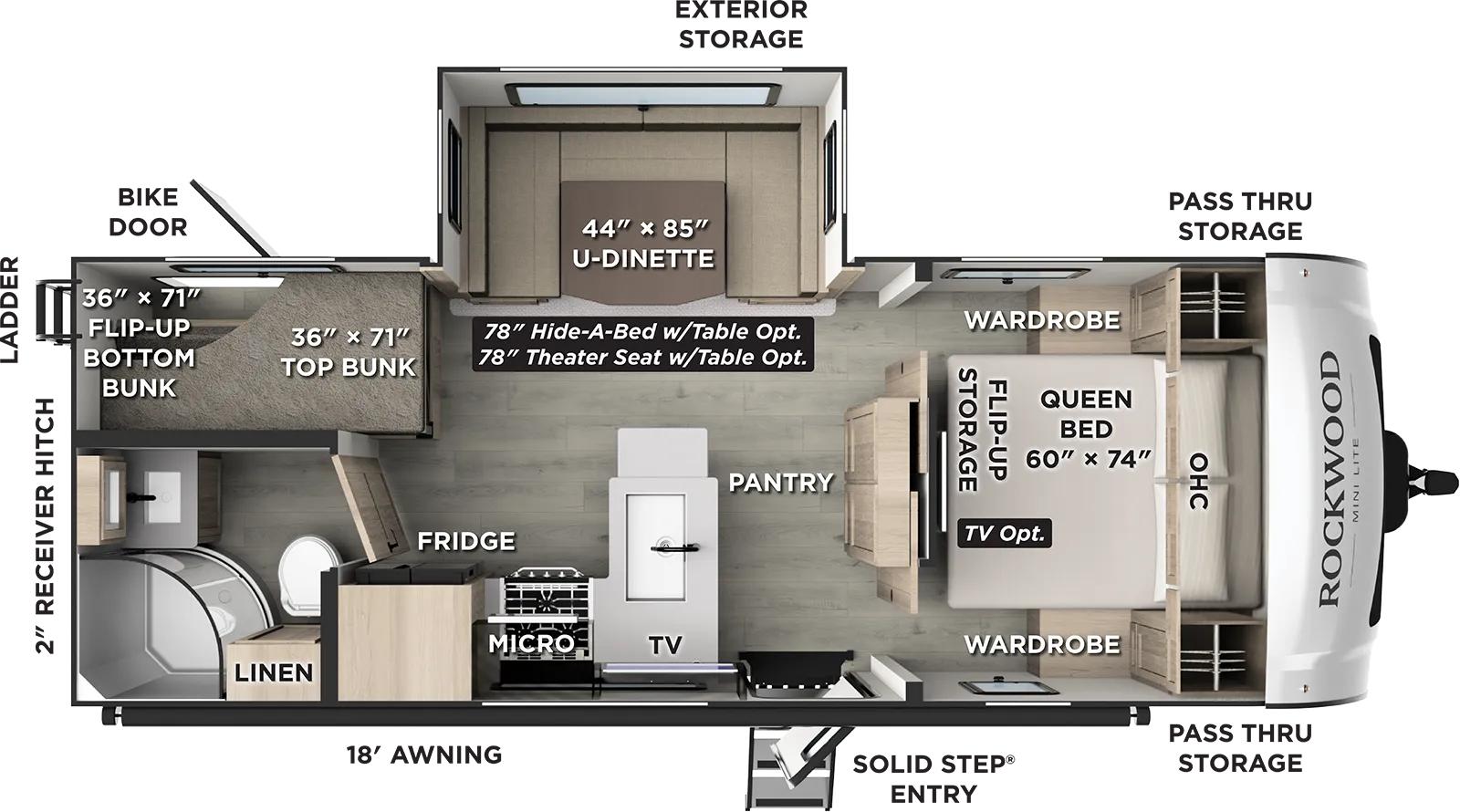

Forest River Rockwood Mini Lite 2520BH floor plan layout published by Forest River
Forest River's published floor plan for the 2520BH.

2520BH: second for sleepers and second for cargo

Sleeping capacity2 of 13 highestUp to 6 per RVUSA; the 2509S is rated for 7
Cargo carrying capacity2 of 13 highest2,127 lb, 10 lb behind the 2509S
Dry weight6 of 13 lightest5,533 lb, the lightest of the four plans at 25 ft 10 in
Hitch weight8 of 13 lightest660 lb, the same as the 2515S; 11.9% of dry weight, 6 of 13 lowest share
LengthShared longest25 ft 10 in, with the 2506FK, 2509S, and 2513S

Bunk corner and bike door at the back of the 2520BH

Forest River's drawing splits the rear of the 2520BH in two. On the wall opposite the door, a 36 by 71 inch top bunk sits over a 36 by 71 inch bottom bunk that flips up, and a bike door opens beside them. The other rear corner is the bathroom, with a curved shower, toilet, lavatory, and linen cabinet. The kitchen runs down the door side: refrigerator, range, and microwave on the wall, with an island holding the sink and a TV. A pantry stands at the foot of the bed.

Across from the kitchen, the only box the drawing shows holds a 44 by 85 inch U-dinette, and RVUSA lists one slide. Forest River offers two replacements for it: a 78-inch hide-a-bed with a table, or a 78-inch theater seat with a table. Up front, the 60 by 74 inch queen has flip-up storage, a wardrobe on each side, and an optional TV. The awning is 18 ft.

Six sleepers, one 29-gallon gray tank

The reason to shortlist the 2520BH is that it carries a family of up to 6 with the second-highest cargo capacity in the line and a dry weight that sits mid-pack at 5,533 lb. Its hitch weight is 11.9% of dry weight, lower as a share than the 2509S's 12.6%.

The tradeoff is the tank package. The 2520BH has the line's smaller 29-gallon gray tank behind a 53-gallon fresh tank, 24 gallons less gray than fresh; that is arithmetic from the two published figures. Four Mini Lites carry 58 gallons of gray, but none of them sleeps more than 4. Every extra person aboard adds shower and dish water to that tank, so a family that camps without hookups should plan dump stops around it.

Walking the 2520BH from bike door to queen

  1. Open the bike door and flip up the 36 by 71 inch bottom bunk. See what fits in that space through the door, and where the bottom mattress goes while it is stowed.
  2. Have whoever will sleep in the bunks lie on both. At 71 inches long, the bunks are the dimension that decides who fits.
  3. Sit at the 44 by 85 inch U-dinette and ask whether this unit has it or one of the 78-inch options. RVUSA's rating of 6 is a figure for the plan; the seating on the lot unit decides where six people actually sleep and eat.
  4. Ask for the slide to be brought in, then walk from the bunks past the island to the queen. The island stands in the aisle between the kitchen wall and the dinette box.

Bunk and four-sleeper plans against the 2520BH

If one more bed is the goalRockwood Mini Lite 2509S

Same 25 ft 10 in length, 30 lb heavier, with a hitch weight 40 lb higher and 10 lb more cargo capacity. It sleeps one more and keeps the same single slide and tank sizes.

Open record →Four sleepers and a second slideRockwood Mini Lite 2522FB

0 ft 1 in shorter and 255 lb heavier, with a hitch weight 15 lb lower and 270 lb less cargo capacity. It sleeps two fewer, adds a slide, and trades the bunks for a 39-inch dinette and a 60-inch theater seat.

Open record →Same length, built for twoRockwood Mini Lite 2513S

The same 25 ft 10 in shell used the other way: 475 lb heavier, a hitch weight 60 lb higher, 415 lb less cargo capacity, four fewer sleepers, and one more slide, with an island kitchen and an outside kitchen.

Open record →
View every Rockwood Mini Lite floor plan →

Published 2520BH specifications

Length25 ft 10 in
Exterior height10 ft 11 in
Exterior width8 ft
Dry weight5,533 lb
Hitch weight660 lb
Cargo carrying capacity2,127 lb
Sleeping capacityUp to 6
Slides1
Fresh water53 gal
Gray water29 gal
Black water29 gal
Awning length18 ft
Sources and model year

2520BH sources, read 2026-09-26

Dimensions, weights, tanks, and the layout come from Forest River's 2027 Rockwood Mini Lite 2520BH figures and floor-plan drawing. Forest River marks the dry weight (UVW) and cargo carrying capacity (CCC) as estimated averages based on standard build optional equipment. Sleeping capacity and slide count are RVUSA's 2027 figures. RVUSA's guide also shows a somewhat higher dry weight than Forest River's UVW and a GVWR that does not match UVW plus CCC, which comes to 7,660 lb by addition, so this page keeps Forest River's weights.
