TRAVEL-TRAILER RECORD · 2027

Rockwood Mini Lite 2108RB

At 22 ft 2 in, the 2108RB is the shortest Rockwood Mini Lite, with a bath across the rear wall and a Murphy bed that shares the front of the trailer with a dinette. Its hitch weight is also the largest share of dry weight in the line.

Source checked
Rockwood Mini Lite 2108RB scale drawing: 22 ft 2 in long, 10 ft 5 in tall Side elevation drawn to scale from the published exterior length of 22 ft 2 in and exterior height of 10 ft 5 in, on a generic travel-trailer outline. Roof sits 3 ft 1 in under a 13 ft 6 in limit. 13 FT 6 IN CLEARANCE 10 ft 5 in 22 ft 2 in overall Roof: 3 ft 1 in under a 13 ft 6 in limit SCALE DRAWING FROM PUBLISHED DIMENSIONS

Drawn to scale from the published 22 ft 2 in length and 10 ft 5 in height, on a generic outline: 3 ft 1 in under a 13 ft 6 in roof limit.

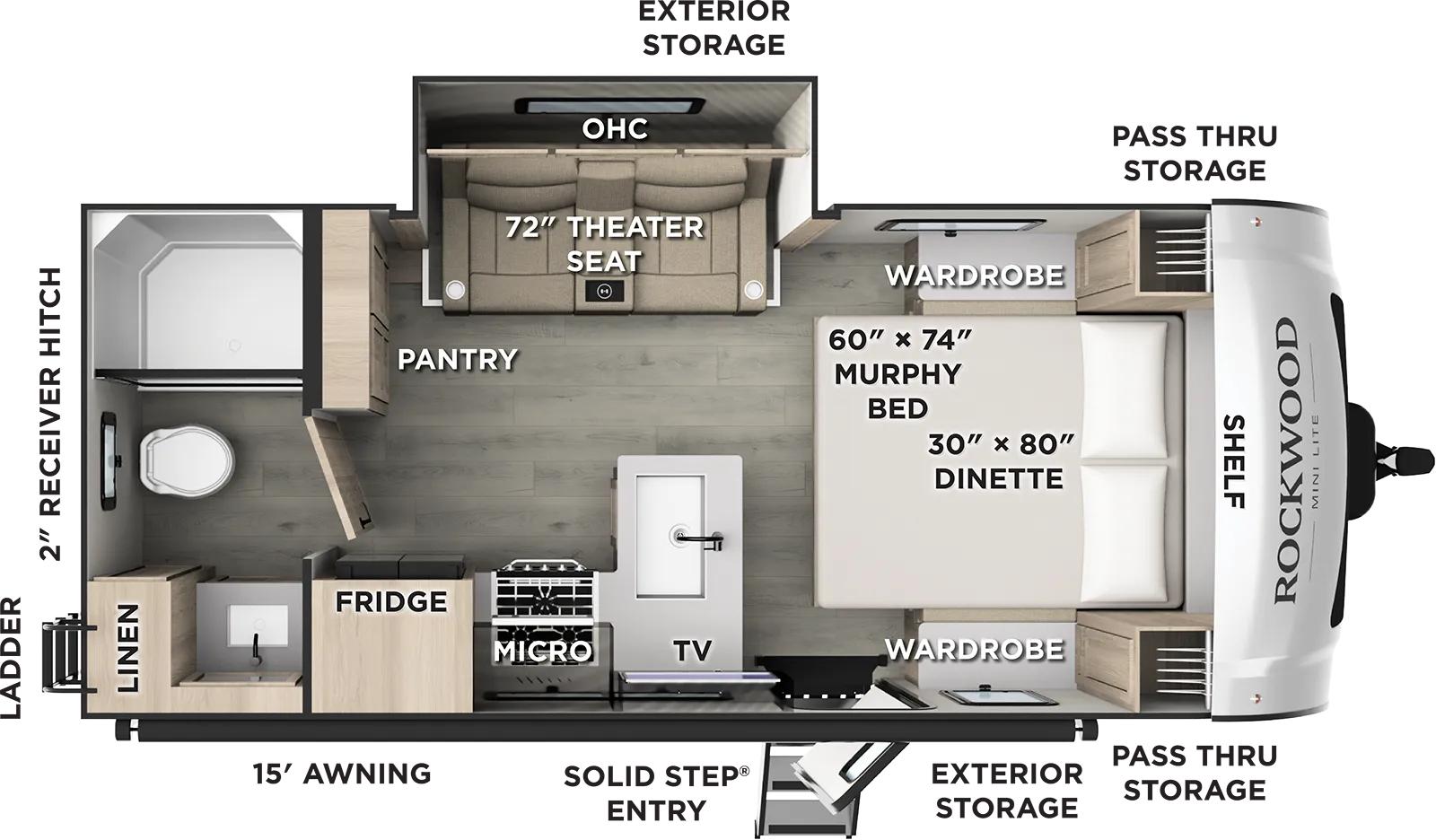

Manufacturer floor plan

Forest River Rockwood Mini Lite 2108RB floor plan layout published by Forest River
Forest River's published floor plan for the 2108RB.

The 2108RB turns its bedroom into a dinette

Forest River's drawing prints two labels on the same front floor: a 60 by 74 inch Murphy bed and a 30 by 80 inch dinette, with a wardrobe on each side and a shelf on the front wall. The one slide, across the aisle from the kitchen, holds a 72-inch theater seat under overhead cabinets. The kitchen runs along the door side (fridge, microwave under the cooktop, sink, TV), a pantry stands on the off-door side, and the bath takes the whole rear wall: shower in one corner, then toilet, sink, and a linen cabinet in the other.

The case for it is length and weight together. No Mini Lite is shorter, and only the 2109S is lighter than its 4,768 lb. RVUSA's GVWR of 6,389 lb sits 1,621 lb above dry weight, exactly Forest River's published cargo capacity, and that margin ranks 2 of 5 among the Mini Lite plans that carry a GVWR on this site.

Forest River's 2027 2108RB page and drawing →

The 2108RB against the other twelve Mini Lites

Length1 of 13 shortest22 ft 2 in; the 2109S is 2 in longer
Dry weight2 of 13 lightest4,768 lb, 296 lb above the 2109S
Hitch weight4 of 13 lightest640 lb
Hitch weight as a share of dry13.4%13 of 13 counting from the lowest share, so the highest in the line
GVWR2 of 5 lowest6,389 lb, from RVUSA
Cargo carrying capacity10 of 131,621 lb
Exterior height10 ft 5 inSecond lowest; eleven plans stand at 10 ft 11 in

2108RB published specifications

Length22 ft 2 in
Exterior height10 ft 5 in
Exterior width8 ft
Dry weight4,768 lb
GVWR6,389 lb
Hitch weight640 lb
Cargo carrying capacity1,621 lb
Sleeping capacityUp to 2
Slides1
Fresh water53 gal
Gray water29 gal
Black water29 gal
Awning length15 ft

What the fold-down bed and the 13.4% hitch share cost

A Murphy bed over a dinette means the front of this trailer is one room at a time. Forest River prints the Murphy bed and the dinette in the same front space, so the thing to learn on the lot is how the two share it: whether the table stays usable with the bed lowered, and how much work it is to fold the bed away each morning. Couples who eat outside or live on the theater seat may not mind. Couples who want a table after dinner will.

The second cost shows up on the scale. The published 640 lb hitch weight is 13.4% of dry weight, the highest share of the 13 plans. The 2109S, two inches longer, publishes 557 lb on a trailer 296 lb lighter. Both are figures for the empty trailer, and on the 2108RB the two wardrobes, the front shelf, and both pass-through bays sit at the hitch end, so what gets packed there moves the loaded number.

Four checks around the 2108RB Murphy bed and rear bath

  1. Lower the 60 by 74 inch Murphy bed and raise it again without help, the way you would each morning, and see what becomes of the dinette while the bed is down.
  2. Bring the slide in and walk from the Solid Step entry to the rear bath and the pantry. With the theater seat closed in, that aisle is the route at every fuel stop.
  3. Stand in the rear bath with a second person at the sink. The bath spans the full rear wall, so check that the shower, toilet, and linen cabinet can all be reached with the door closed.
  4. Decide what goes into the two wardrobes, the front shelf, and the pass-through bays before choosing a hitch setup. All of them sit at the hitch end, and the 640 lb figure is for the empty trailer.

Three Mini Lites to set beside the 2108RB

The other shortest plan, with a fixed queenRockwood Mini Lite 2109S

2 in longer and 296 lb lighter, with 83 lb less hitch weight and a GVWR 552 lb lower. A fixed 60 by 74 inch queen replaces the Murphy bed, and the slide holds a 72-inch sofa with a small table. It sleeps one more and gives up 256 lb of cargo capacity.

Open record →The same Murphy bed, plus bunksRockwood Mini Lite 2509S

3 ft 8 in longer and 795 lb heavier, with 60 lb more hitch weight and 516 lb more cargo capacity. Its 60 by 74 inch Murphy bed is printed over a 74-inch sofa instead of a dinette, and double bunks and a U-dinette slide take sleeping capacity to 7.

Open record →Another bath across the rear wallRockwood Mini Lite 2213S

1 ft 8 in longer and 625 lb heavier, GVWR 604 lb higher, with 10 lb more hitch weight and 21 lb less cargo capacity. The bath still spans the back, but the front holds a fixed 60 by 80 inch queen and a pull-out table with two chairs becomes the dining spot.

Open record →
View every Rockwood Mini Lite floor plan →
Sources and model year

Where the 2108RB figures come from

Length, height, dry weight, hitch weight, cargo capacity, tank sizes, and the 15 ft awning are Forest River's 2027 figures for the 2108RB, read on 2026-09-26, and every room named here is a label on Forest River's 2027 drawing. Forest River calls the dry weight UVW and the cargo figure CCC and marks both as estimated averages based on standard build optional equipment, so the label on the actual trailer is the one to use. GVWR, sleeping capacity, and slide count come from RVUSA's 2027 spec guide.
