TRAVEL-TRAILER RECORD · 2027

Coleman 19B

The 19B puts a flush floor slide out on a single-axle Coleman bunkhouse and uses it for the booth dinette. It sleeps up to 7 in 23 ft 7 in and carries the largest fresh tank in the line, 46 gal.

Source checked
Coleman 19B scale drawing: 23 ft 7 in long, 10 ft 3 in tall Side elevation drawn to scale from the published exterior length of 23 ft 7 in and exterior height of 10 ft 3 in, on a generic travel-trailer outline. Roof sits 3 ft 3 in under a 13 ft 6 in limit. 13 FT 6 IN CLEARANCE 10 ft 3 in 23 ft 7 in overall Roof: 3 ft 3 in under a 13 ft 6 in limit SCALE DRAWING FROM PUBLISHED DIMENSIONS

Drawn to scale from the published 23 ft 7 in length and 10 ft 3 in height, on a generic outline: 3 ft 3 in under a 13 ft 6 in roof limit.

Manufacturer floor plan

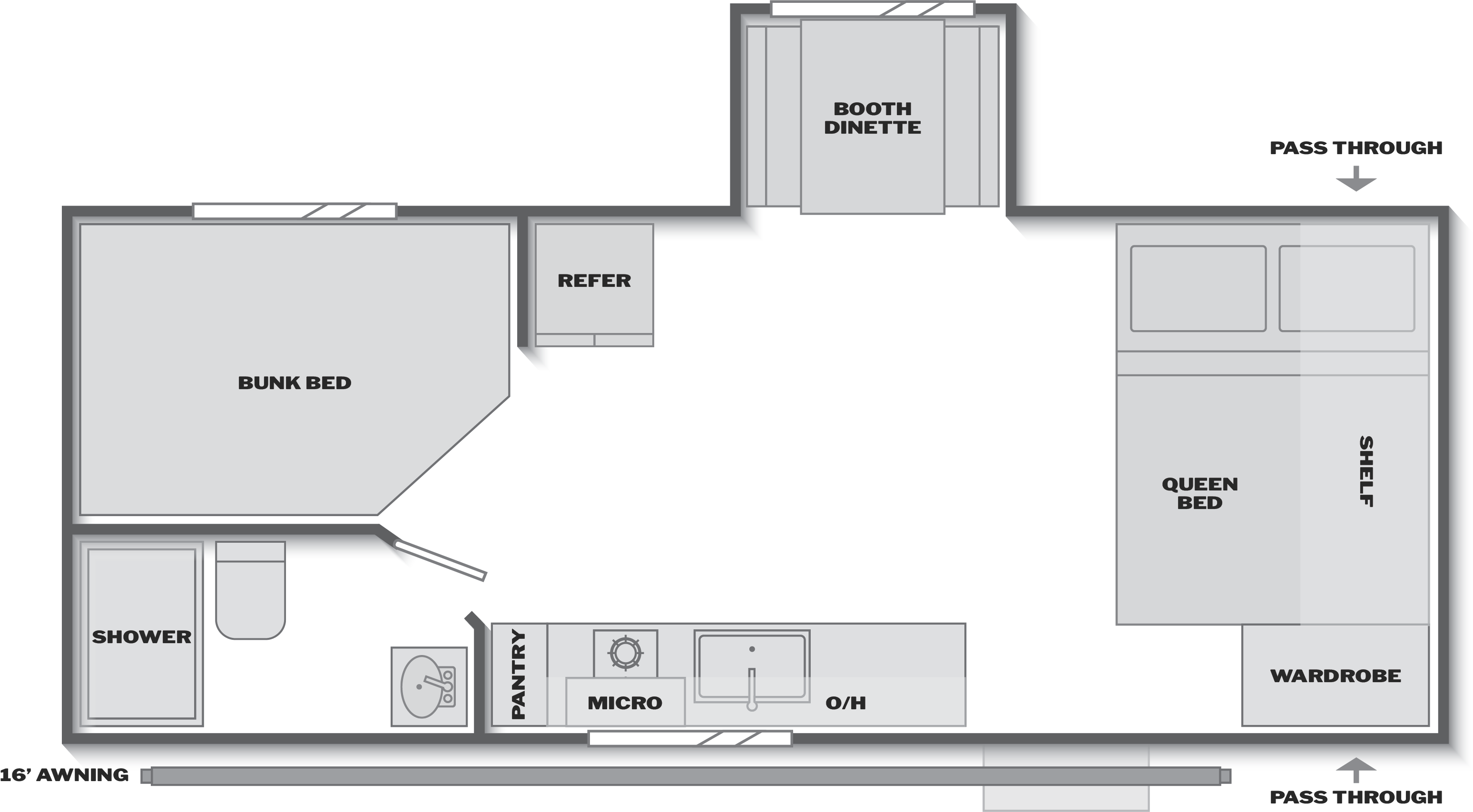

Keystone Coleman 19B floor plan layout published by Keystone
Keystone's published floor plan for the 19B.

19B: a bunkhouse with the dinette in the slide

Keystone's tagline reads "Single Axle, Flush Floor Slide Out, Bunkhouse", and the line listing tags the 19B as a new floor plan for 2027. The drawing shows one slide room, on the off-door wall mid-coach, holding the booth dinette. At the rear, a bunk bed with an angled aisle corner fills the off-door side and a bath with a shower, toilet and lavatory sink fills the door side. The refrigerator stands on the off-door wall beside the bunk. The door-side wall carries a pantry, a cooktop, a microwave, a sink and overhead cabinets along its rear half, and the queen, 60x74 with underbed storage per the features list, lies crosswise at the front with its head to the off-door wall and a wardrobe in the door-side corner.

Seven sleeping places is the third highest count in the line, behind only the 23B and 25B at 8, and the 19B reaches it in 23 ft 7 in, 3 ft 11 in shorter than the 23B. Water follows the sleeping count: 46 gal fresh is the most of any Coleman, and the three tanks total 114 gal, also the most.

Keystone's 2027 Coleman 19B page and drawing →

19B ranks from Keystone's figures

Length7 of 10 shortest23 ft 7 in
Dry weight8 of 10 lightest4,240 lb
Hitch weight9 of 10 lightest602 lb; only the 25B is higher
Hitch share of dry9 of 10 lowest14.2%
Sleeping capacity3 of 10 highestUp to 7
Cargo carrying capacity5 of 10 highest1,460 lb
Fresh waterLargest in the line46 gal of a 114 gal tank total
Slides1the 25B is the only other Coleman with one

The slide and the extra water show up at the hitch. The 23B is 3 ft 11 in longer and 279 lb heavier, yet its published hitch weight is 74 lb lower than the 19B's. Cargo runs the other way: the 19B's 1,460 lb is 521 lb below the 23B. A family choosing between the two is choosing between a slide-out dinette on the shorter trailer and a lower hitch weight with more cargo on the longer one.

Published 19B specifications

Length23 ft 7 in
Exterior height10 ft 3 in
Dry weight4,240 lb
Hitch weight602 lb
Cargo carrying capacity1,460 lb
Sleeping capacityUp to 7
Slides1
Fresh water46 gal
Gray water34 gal
Black water34 gal

Other Coleman bunk plans next to the 19B

All three have bunks. Differences are arithmetic from Keystone's published figures.

Single bunks, no slide, 3 ft 5 in shorterColeman 17B

1,169 lb lighter and 204 lb lighter at the hitch, sleeping 2 fewer with 231 lb less cargo. Its dinette sits on a fixed wall across from the galley.

Open record →Double bunks and the line's most cargoColeman 23B

3 ft 11 in longer and 279 lb heavier, but 74 lb lighter at the hitch. It sleeps 1 more, carries 521 lb more cargo, and has no slide.

Open record →Super slide and a private bedroomColeman 25B

5 ft 10 in longer, 1,308 lb heavier and 144 lb heavier at the hitch, with the same single slide. It sleeps 1 more and carries 492 lb more cargo.

Open record →
View every Coleman floor plan →

19B checks with the slide in and out

  1. With the slide in, walk from the door to the bunk and the rear bath. The dinette travels inside the slide, so check whether the pantry, galley and bath stay reachable at a rest stop.
  2. Count the burners. The drawing shows a single cooktop symbol, while Keystone's features name a 2 burner gas range.
  3. Ask how the unit is set up for propane, given the spec table entry described in the note below.
  4. Measure the bunk along the wall and along the aisle. Its aisle corner is angled on the drawing, so the two sides differ.
Sources and model year

19B source notes, including the propane entry

Figures, the tagline and the drawing come from Keystone's 2027 Coleman 19B page, read on 2026-09-26. Two entries on that page need a dealer's answer. The spec table gives one propane tank with an LPG figure of 0 lb, while the features list a 2 burner gas range, a 20,000 BTU furnace and a 42,000 BTU tankless water heater. The drawing shows one cooktop symbol where the features name two burners. The slide count comes from the tagline and the one slide room on the drawing. Keystone labels dry weight Shipping Weight and publishes one Height figure, 10 ft 3 in.
