TRAVEL-TRAILER RECORD · 2027

Rockwood Mini Lite 2506FK

Kitchen at the front, bath in the middle, queen bed at the rear, with a U-dinette in the one slide and a door at each end. The 2506FK publishes the third-highest cargo capacity in the Mini Lite line, 2,032 lb.

Source checked
Rockwood Mini Lite 2506FK scale drawing: 25 ft 10 in long, 10 ft 11 in tall Side elevation drawn to scale from the published exterior length of 25 ft 10 in and exterior height of 10 ft 11 in, on a generic travel-trailer outline. Roof sits 2 ft 7 in under a 13 ft 6 in limit. 13 FT 6 IN CLEARANCE 10 ft 11 in 25 ft 10 in overall Roof: 2 ft 7 in under a 13 ft 6 in limit SCALE DRAWING FROM PUBLISHED DIMENSIONS

Drawn to scale from the published 25 ft 10 in length and 10 ft 11 in height, on a generic outline: 2 ft 7 in under a 13 ft 6 in roof limit.

Manufacturer floor plan

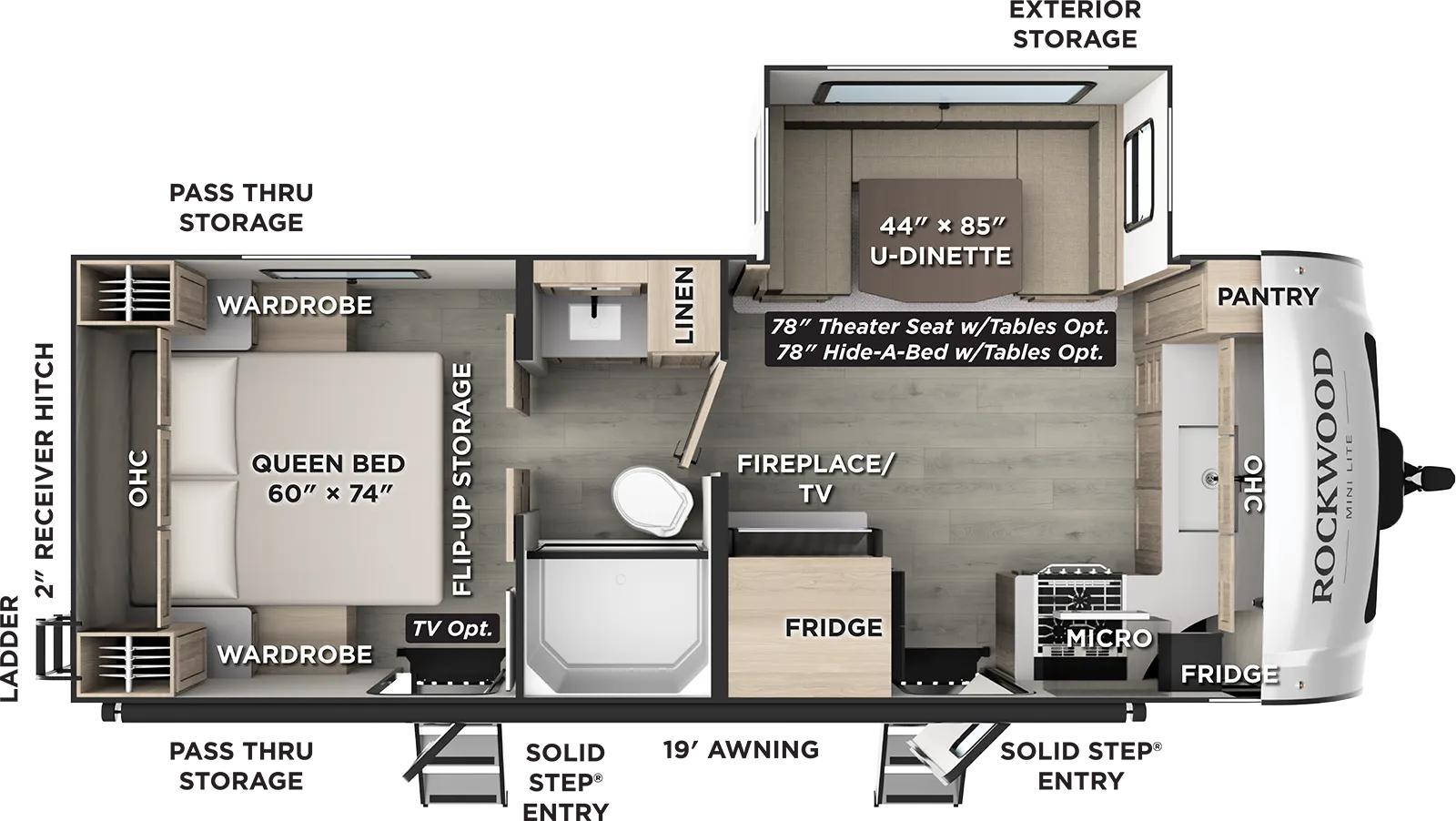

Forest River Rockwood Mini Lite 2506FK floor plan layout published by Forest River
Forest River's published floor plan for the 2506FK.

A front kitchen and two doors on the 2506FK

Forest River's drawing puts the kitchen across the front of the 2506FK: a pantry in the off-door corner, a sink along the front wall under overhead cabinets, and the cooktop and microwave on the door side, with a Fridge label in that front corner. The slide, just behind the kitchen on the off-door side, holds a 44 by 85 inch U-dinette, with a 78-inch theater seat or a 78-inch hide-a-bed, each with tables, printed as options. Opposite it, a fireplace and TV share the door-side wall. The bath sits mid-trailer with its shower on the door side, and the rear is the bedroom: a 60 by 74 inch queen between two wardrobes, overhead cabinets on the rear wall, flip-up storage at its foot, and a TV option.

Two Solid Step entries serve the two halves, one at the kitchen and one at the bath and bedroom end, so the bedroom has a door of its own.

The front kitchen is the tradeoff to weigh. The fridge, cooktop, and pantry all sit at the hitch end, and the published 710 lb hitch weight already ranks 11 of 13 (12.5% of dry weight) even though the 5,678 lb dry weight sits mid-pack at 8 of 13. That hitch figure is for the empty trailer; a stocked pantry at the front adds to it. What the plan gives back is capacity: 2,032 lb of cargo, and a 58 gal gray tank, one of four in the line, for 140 gal of tanks in all with 53 gal fresh and 29 gal black.

Forest River's 2027 2506FK page and drawing →

Two Mini Lites that rearrange the 2506FK rooms

The mirror image: bed front, kitchen rearRockwood Mini Lite 2515S

1 in shorter and 110 lb heavier, with 50 lb less hitch weight and 160 lb less cargo capacity. The same three zones run the other way: queen at the front, bath in the middle, kitchen along the rear wall. It keeps two entries and the 58 gal gray tank, adds a second slide, and sleeps the same four.

Open record →Same U-dinette slide, more bedsRockwood Mini Lite 2509S

Same 25 ft 10 in length, 115 lb lighter, 10 lb less hitch weight, 105 lb more cargo capacity. The 44 by 85 inch U-dinette slide and its 78-inch options are the same, but it sleeps up to 7, with a Murphy bed at the front and double bunks at the rear. Its gray tank is 29 gal, half the 2506FK's.

Open record →
View every Rockwood Mini Lite floor plan →

The 2506FK by rank: third for cargo, eleventh for hitch

Cargo carrying capacity3 of 13 highest2,032 lb
Hitch weight11 of 13 lightest710 lb, which is 12.5% of dry weight
Dry weight8 of 13 lightest5,678 lb
Length25 ft 10 inThe longest in the line, a length four plans share
Gray water58 galOne of four plans with the larger gray tank; 140 gal of tanks in total
Sleeping capacityUp to 4Shared with the 2515S and 2522FB

2506FK specifications

Length25 ft 10 in
Exterior height10 ft 11 in
Exterior width8 ft
Dry weight5,678 lb
Hitch weight710 lb
Cargo carrying capacity2,032 lb
Sleeping capacityUp to 4
Slides1
Fresh water53 gal
Gray water58 gal
Black water29 gal
Awning length19 ft

Walk the 2506FK from the kitchen door to the bedroom door

  1. Enter by the front Solid Step. The cooktop, microwave, and front-corner fridge are right there, so check that the fridge door and the entry door do not block each other.
  2. Find the second spot labeled Fridge: the drawing prints it on a tall cabinet mid-trailer on the door side, next to the fireplace and TV. Ask which space holds the refrigerator on this unit and what the other one is.
  3. Seat four at the 44 by 85 inch U-dinette, or, if the unit has the 78-inch theater seat or hide-a-bed option instead, count the places at its tables.
  4. Walk past the mid bath to the rear queen and out through the second door. Check how the bath door and the flip-up storage at the foot of the bed clear each other.
Sources and model year

2506FK: two sources and one GVWR mismatch

Length, height, dry weight (Forest River's UVW), hitch weight, cargo capacity (CCC), tanks, and the 19 ft awning come from Forest River's 2027 page for the 2506FK, read on 2026-09-26, and the rooms are the labels on its 2027 drawing. Forest River marks UVW and CCC as estimated averages based on standard build optional equipment. Sleeping capacity and slide count come from RVUSA's 2027 spec guide. RVUSA also lists a GVWR for this plan that does not equal Forest River's UVW plus CCC, which add to 7,710 lb by arithmetic; the weights on this page are Forest River's.
